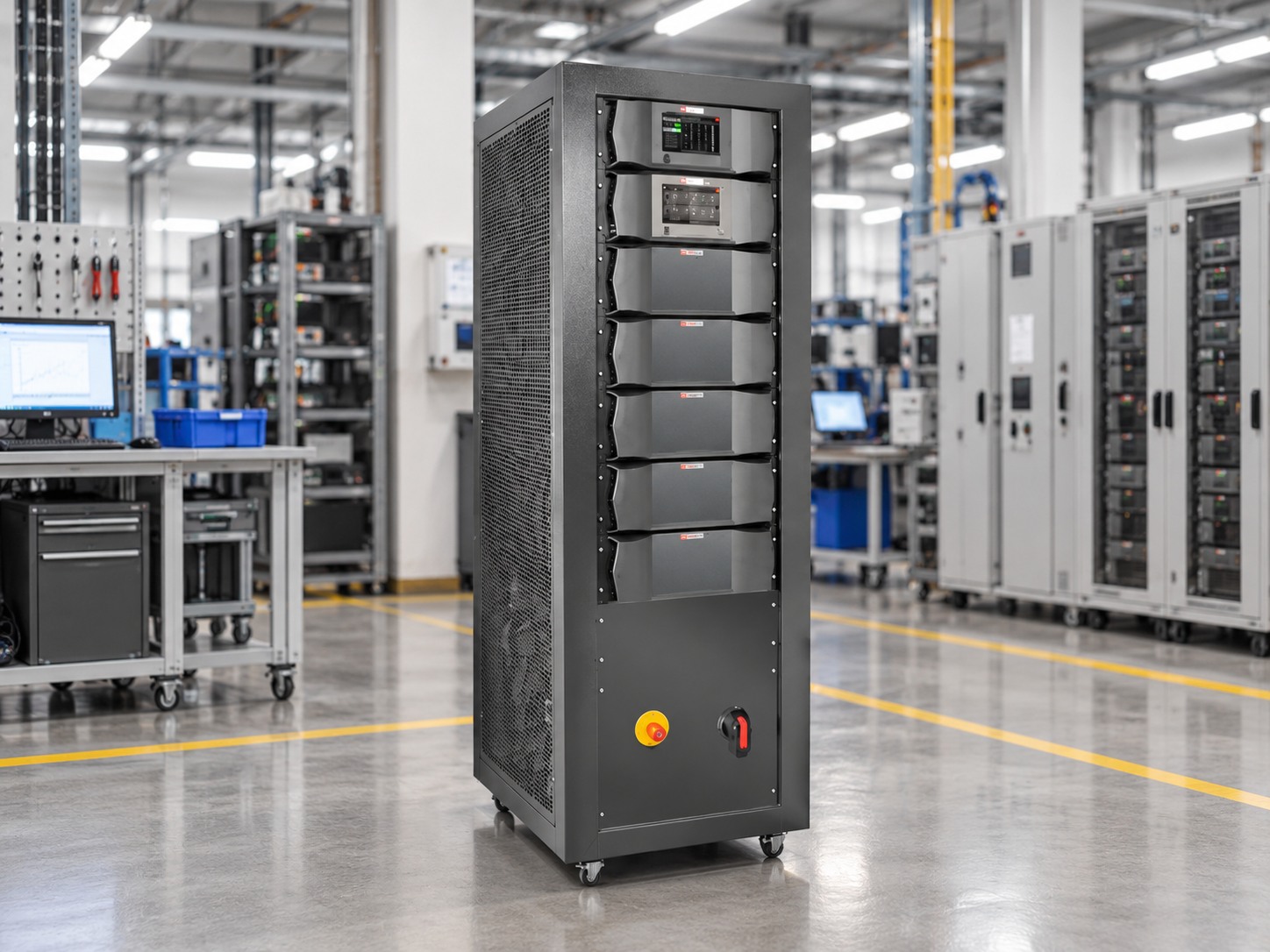

UBT RE
The Ador Digatron cycler UBT RE enables you to effortlessly perform high-current tests on starter batteries in the current range from 150 amps. Equipped with regenerative DC links, the device offers ultimate energy and cost efficiency — a large part of the energy used is made available again. It also features the highest packing density on the market and saves an enormous amount of space.
Energy and Cost Efficient
Regenerative DC links return a large part of the energy used.
Space-Saving
Highest packing density on the market.
Precise Test Results
Synchronized hardware and software for precise measurements.
Technical Data
| Voltage range | -20 V up to 20 V* |
|---|---|
| Current range (circuit) | 150 A* |
| Paralleling of circuits | Yes |
| Control accuracy U DC | < ± 0.05 % fs |
| Control accuracy I DC | < ± 0.1 % fs |
| Regenerative DC link | Yes |
| Mains feedback | Yes |
| Circuits per power module | 1 up to 6 |
| Max. circuits per cabinet | 48 |
| Scalable | Yes |
* additional values on request
Suitable for the Following Tests
High-current capacity testsCold cranking simulationPulse tests
