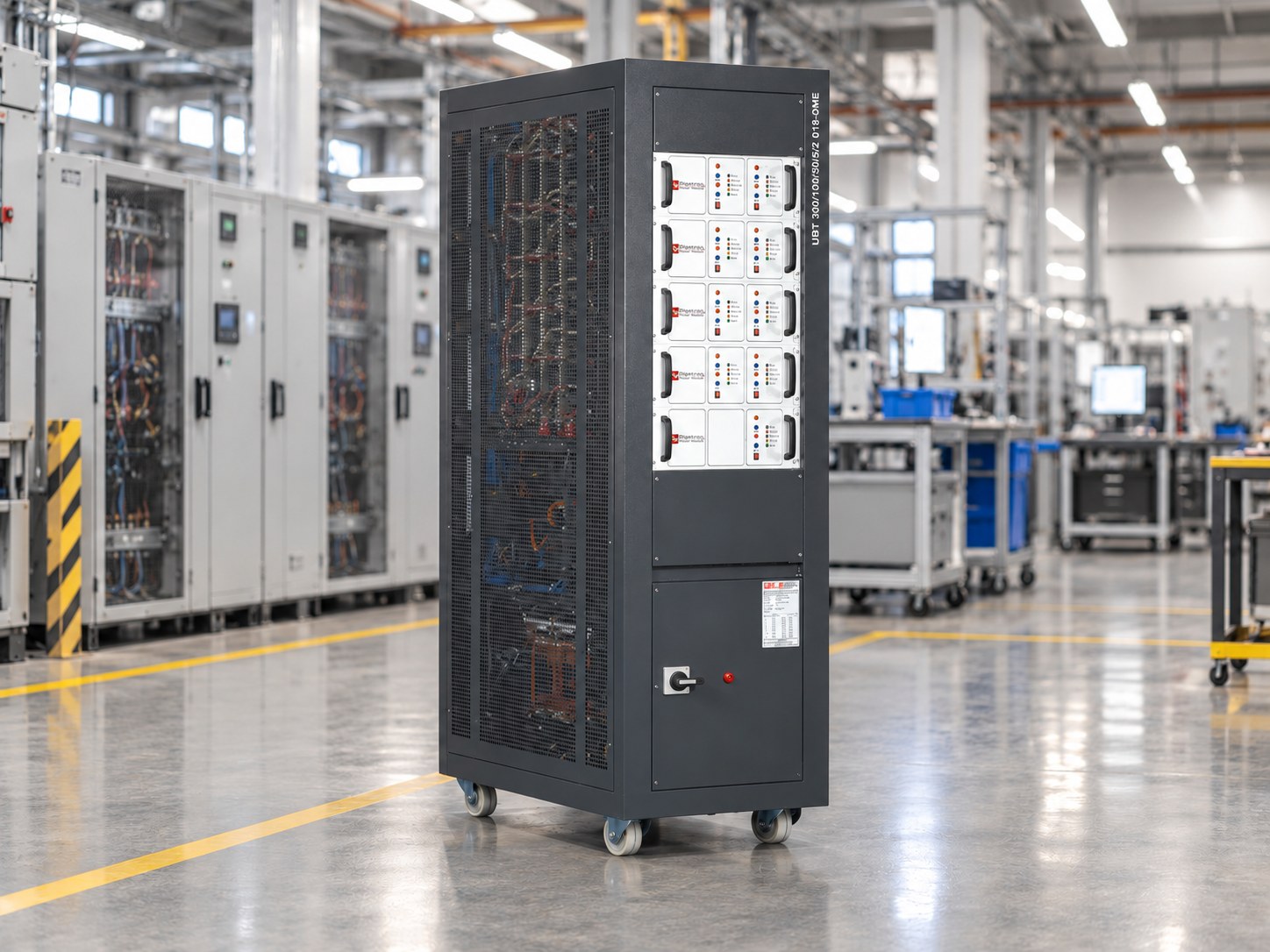

UBT ME (Standard)
This cycler is the right choice for automated tests on SLI batteries in the current range between 10 amps and 40 amps. Thanks to its high packing density — unique on the market — it offers up to 256 test circuits in just one cabinet, perfect for laboratories where high quantities of batteries need to be tested.
High Energy Efficiency
Switch-mode amplifiers with up to 96% efficiency and regenerative DC links; power units with exclusive B.E.S.T. technology.
Parallel Connection of Circuits
All built-in power outputs can be connected in parallel to increase the current accordingly.
Space-Saving
Up to 256 test circuits in a single cabinet.
Technical Data
| Voltage range | 0 V up to 18 V* |
|---|---|
| Current range (circuit) | 25 A up to 150 A* |
| Paralleling of circuits | Yes |
| Control accuracy U DC | < ± 0.1 % fs |
| Control accuracy I DC | < ± 0.1 % fs |
| Regenerative DC link | No |
| Mains feedback | No |
| Max. circuits per cabinet | 12* |
| Scalable | Yes |
* additional values on request
