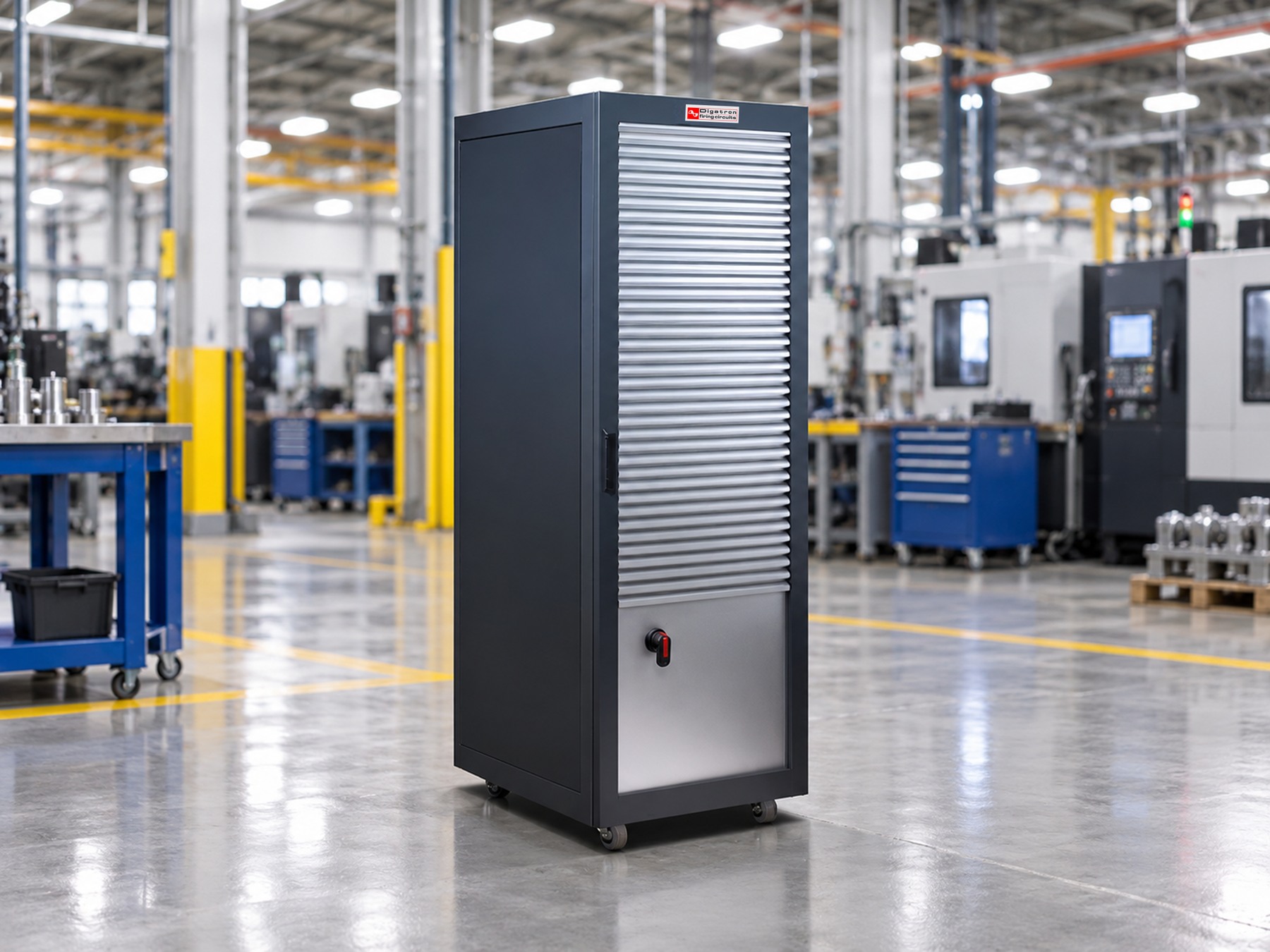

UBT ME (Modular)
The industry classic: this cycler proves its worth with reliable operation and a long lifespan. Once up and running, it performs reliable and highly automated test runs on starter batteries for two-wheelers, cars and trucks between 25 amps and 150 amps.
Precise Test Results
Perfectly synchronized hardware and software achieve measurement results accurate to a few millivolts.
Parallel Connection of Circuits
All built-in power outputs can be connected in parallel to increase the current accordingly.
Optimal Scalability
Scales from a few circuits in a small cabinet frame to dozens of circuits.
Technical Data
| Voltage range | 0 V up to 18 V* |
|---|---|
| Current range (circuit) | 25 A up to 150 A* |
| Paralleling of circuits | Yes |
| Control accuracy U DC | < ± 0.1 % fs |
| Control accuracy I DC | < ± 0.1 % fs |
| Regenerative DC link | No |
| Mains feedback | No |
| Max. circuits per cabinet | 24* |
| Scalable | Yes |
* additional values on request
Suitable for the Following Tests
CapacityCold cranking simulationCyclic aging testsCustomized test profiles
