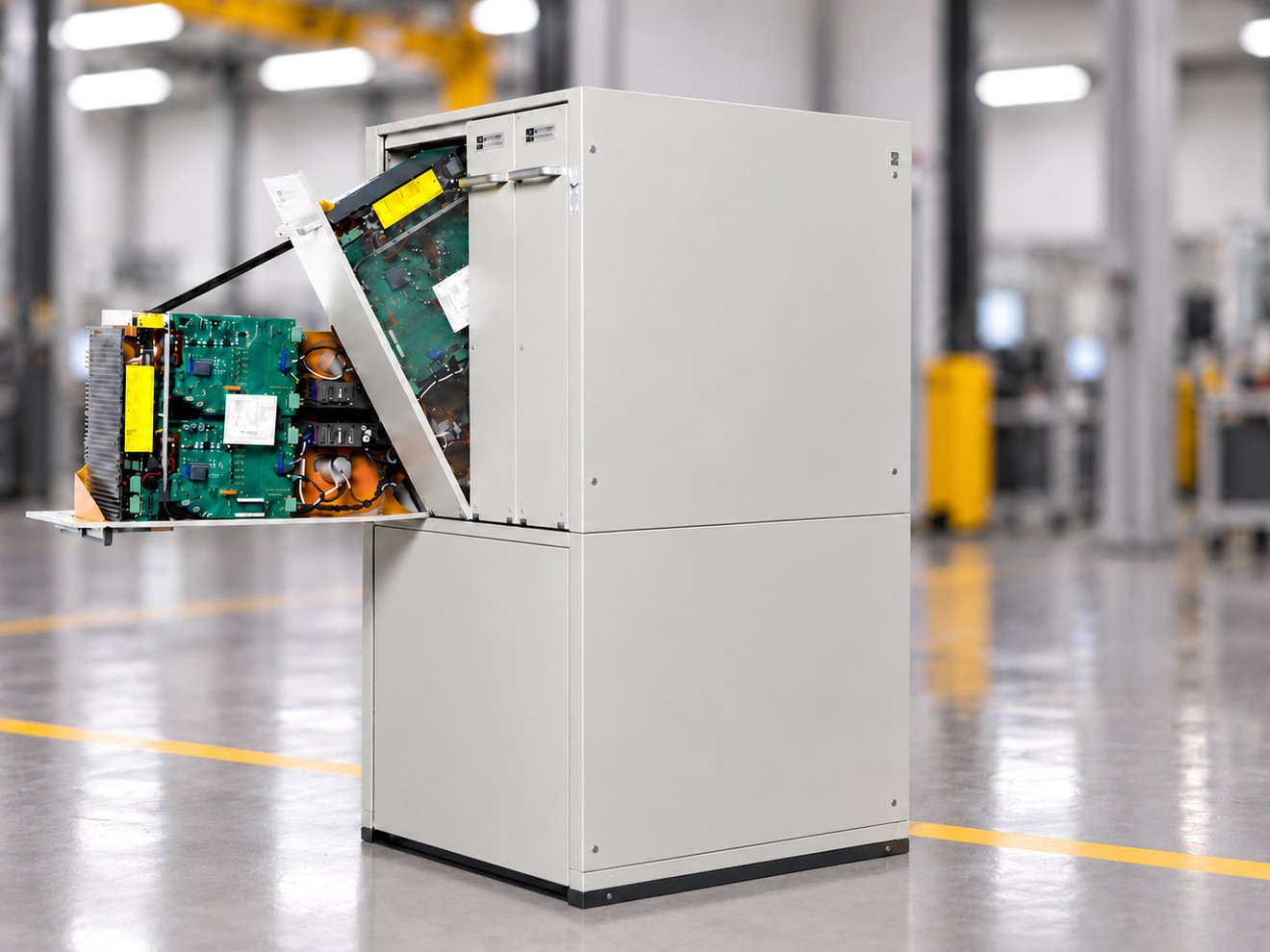

MSfF Pack Tester
Ador Digatron's MSfF pack testers are multiple-circuit formation rectifiers for the initial charge — and optionally the discharge — of lithium-ion batteries. They have proven their worth in thousands of installations through flawless quality and reliability. Depending on your requirements, we supply the device with typical thyristor technology, as IGBT, for solderless formations, or in the cutting-edge energy-saving version with SiC MOSFET technology.
High Energy Efficiency
The SiC MOSFET variant is especially economical with energy; all variants feature energy feedback.
Flexible Technology
Thyristor, IGBT, SiC MOSFET or tackless plate formation versions.
High Capacity
Up to 320–350 batteries per cabinet, or 30–80 tanks as TCR.
Technical Data
| Voltage range | 0 up to 450 V (Thyristor) · 0 up to 400 V (IGBT) · 0 up to 360 V (SiC-MOSFET) |
|---|---|
| Current range | ±30 A up to ±200 A · ±60 A up to ±100 A · tackless up to ±700 A |
| Control accuracy U DC | < ± 1.0 % fs |
| Control accuracy I DC | < ± 1.0 % fs |
| Energy feedback | Yes |
| Total batteries per cabinet | 320–350 · 30–80 tanks (TCR) |
| Scalable | Yes |
* additional values on request
