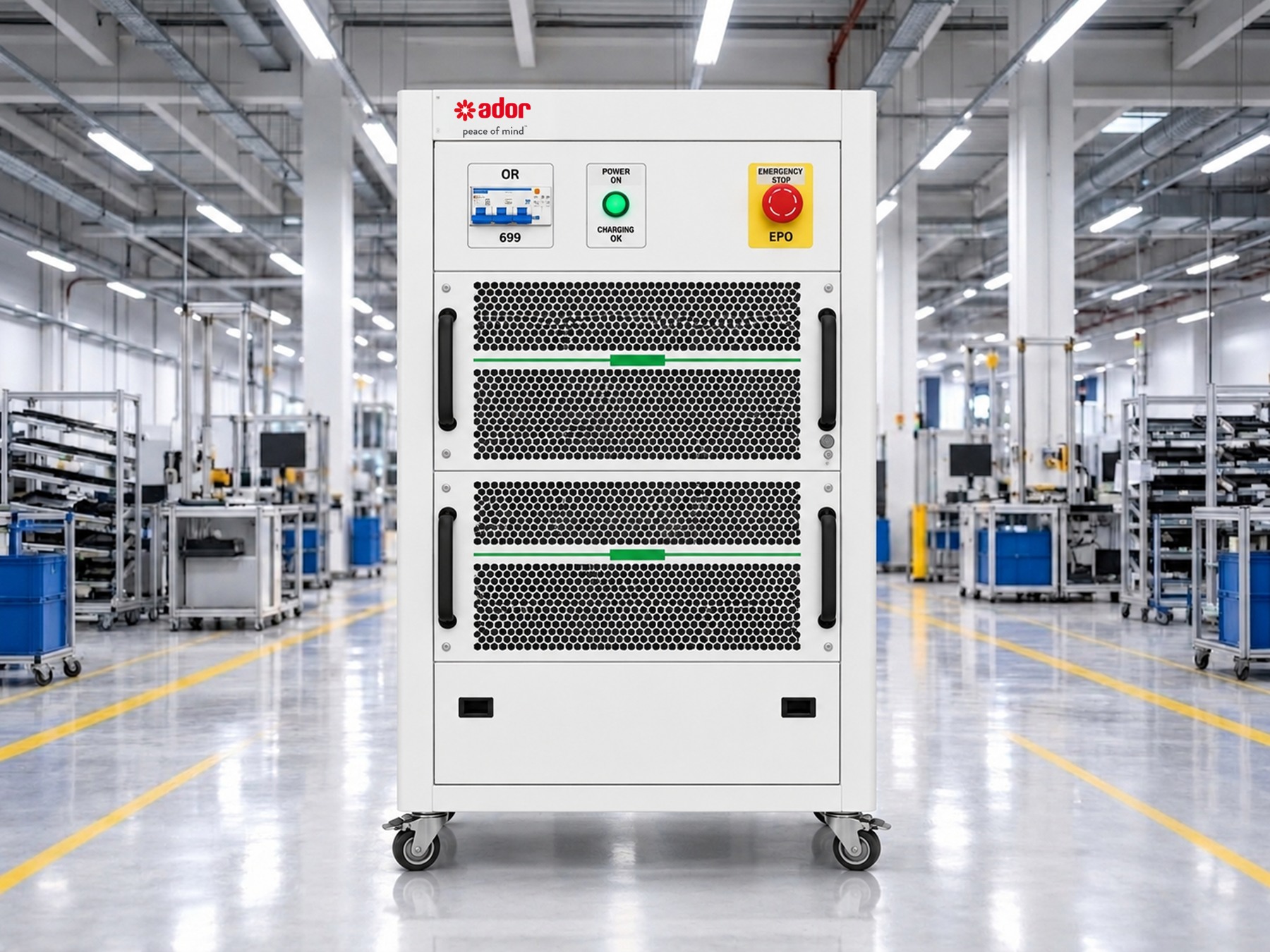

LPT-M — Mid-Voltage Pack Tester
Laboratory testing system for lithium modules and mid-voltage packs, built for validation, endurance and performance testing in development environments.
- •Laboratory testing for lithium modules and mid-voltage packs
- •Validation, endurance and performance test profiles
- •Engineered and supported in India
Technical Data
| Model | LPT-M-60V100A-8CH200A-4CH400A-2CH | LPT-M-150V100A-6CH200A-3CH300A-2CH | LPT-M-150V100A-16CH200A-8CH400A-4CH | LPT-M-200V100A-4CH200A-2CH400A-1CH | LPT-M-200V100A-8CH200A-4CH400A-2CH | LPT-M-300V100A-8CH200A-4CH400A-2CH |
|---|---|---|---|---|---|---|
| Channels | 8 / 4 / 2 | 6 / 3 / 2 | 16 / 8 / 4 | 4 / 2 / 1 | 8 / 4 / 2 | 8 / 4 / 2 |
| Voltage range | Charge: 0V ~ 60V Discharge: 60V ~ 2V | Charge: 0V ~ 150V Discharge: 150V ~ 2V | Charge: 0V ~ 200V Discharge: 200V ~ 2V | Charge: 0V ~ 300V Discharge: 300V ~ 3V | ||
| Min. discharge voltage | 2V | 2V | 2V | 3V | ||
| Voltage accuracy (@ 25°C ±5°C) | ±0.03% F.S. (±18 mV) | ±0.02% F.S. (±30 mV) | ±0.02% F.S. (±40 mV) | ±0.02% F.S. (±60 mV) | ||
| Max. current | ±100A / ±200A / ±400A | ±100A / ±200A / ±300A | ±100A / ±200A / ±400A | ±100A / ±200A / ±400A | ±100A / ±200A / ±400A | ±100A / ±200A / ±400A |
| Max. parallel current | 800A | 600A | 800A | 400A | 800A | 800A |
| Single channel power | ±6kW / ±12kW / ±24kW | ±12kW / ±24kW / ±36kW | ±12kW / ±24kW / ±48kW | ±20kW / ±40kW / ±80kW | ±20kW / ±40kW / ±80kW | ±30kW / ±60kW / ±120kW |
| Total output power | ±48kW | ±72kW | ±192kW | ±80kW | ±160kW | ±196kW |
| Voltage / current resolution | 0.1 mV / 0.1 mA (24 bit) | |||||
| Current accuracy | ±0.03% F.S. | |||||
| Power accuracy / resolution | ±0.05% FS @ 25°C ±5°C / 1 mW | |||||
| Min. data recording period | 10 ms | |||||
| Current response / switching time | < 3 ms (10% ~ ±90% FS, battery load) / < 5 ms (-90% FS ~ +90% FS, battery load) | |||||
| Max. charging conversion efficiency | 94% | 96% | ||||
| Max. discharge feedback efficiency | 92% | 94% | ||||
| Communication interfaces | (1 × CAN + 1 × RS485) / CH | |||||
| Test functions | Rest, CC, CV, CP, CR, pulse, simulated working conditions, DCIR, If/Or/And logic, chamber and water cooling equipment control, BMS communication | |||||
| Size (W × H × D) | 720 × 1250 × 750 mm | 720 × 1250 × 750 mm | 920 × 1850 × 750 mm | 720 × 1250 × 750 mm | 920 × 1850 × 750 mm | 920 × 1850 × 750 mm |
| Weight | < 220 kg | < 220 kg | < 415 kg | < 220 kg | < 415 kg | < 415 kg |
Specifications are subject to change without notice.
