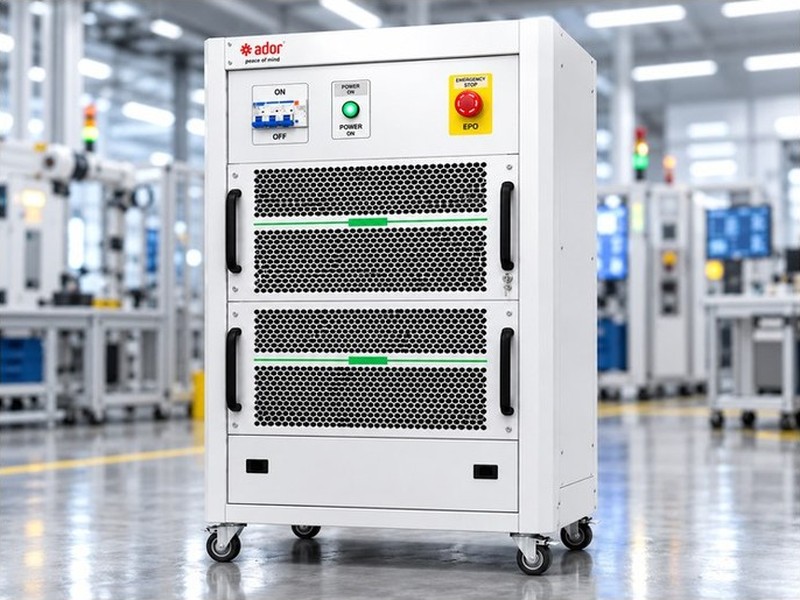

LCT — Laboratory Cell Tester
High-precision laboratory cell tester with energy feedback channels, designed for cell development, characterization and validation work in lithium laboratories.
- •High-precision charge/discharge cycling for lithium cells
- •Energy feedback channels reduce operating cost
- •Suited to cell development, characterization and validation
Technical Data
| Model | LCT-5V-75A-32CHLCT-5V-150A-16CHLCT-5V-300A-8CH | LCT-5V-100A-32CHLCT-5V-150A-32CHLCT-5V-300A-16CH | LCT-6V-400A-16CHLCT-6V-600A-8CHLCT-6V-1200A-4CH |
|---|---|---|---|
| Channels | 32 / 16 / 8 | 32 / 32 / 16 | 16 / 8 / 4 |
| Voltage range | Charge: -5V ~ 5V Discharge: 5V ~ -5V | Charge: 0V ~ 5V Discharge: 5V ~ 1V | Charge: 0V ~ 6V Discharge: 6V ~ 1V |
| Max. current | ±75A / ±150A / ±300A | ±100A / ±150A / ±300A | ±400A / ±600A / ±1200A |
| Max. parallel current | ±600A | ±1200A | ±2400A |
| Voltage accuracy / resolution | ±0.02% F.S. @ 25°C ±5°C / 0.1 mV (24 bit) | ||
| Current accuracy / resolution | ±0.03% F.S.R. @ 25°C ±10°C / 0.1 mA (24 bit) | ||
| Power accuracy / resolution | ±0.05% F.S. @ 25°C ±5°C / 1 mW | ||
| Min. data recording period | 1 ms / 3 ms / 5 ms / 10 ms (optional) | ||
| Current response / switching time | < 3 ms (10% ~ ±90% FS, battery load) / < 5 ms (-90% FS ~ +90% FS, battery load) | ||
| Max. charging conversion efficiency | 75% | 81% | |
| Max. discharge feedback efficiency | 70% | 79% | |
| Temperature auxiliary channel | Standard: 1 K-type thermocouple per channel (other types optional) | ||
| Test functions | Rest, CC, CV, CP, CR, pulse, simulated working conditions, DCIR, If/Or/And logic, chamber and water cooling equipment control | ||
| Size (W × H × D) | 720 × 1850 × 750 mm | 720 × 1250 × 750 mm | |
| Weight | < 230 kg | < 220 kg | |
Specifications are subject to change without notice.
