Hybrid Electric Vehicle Tester

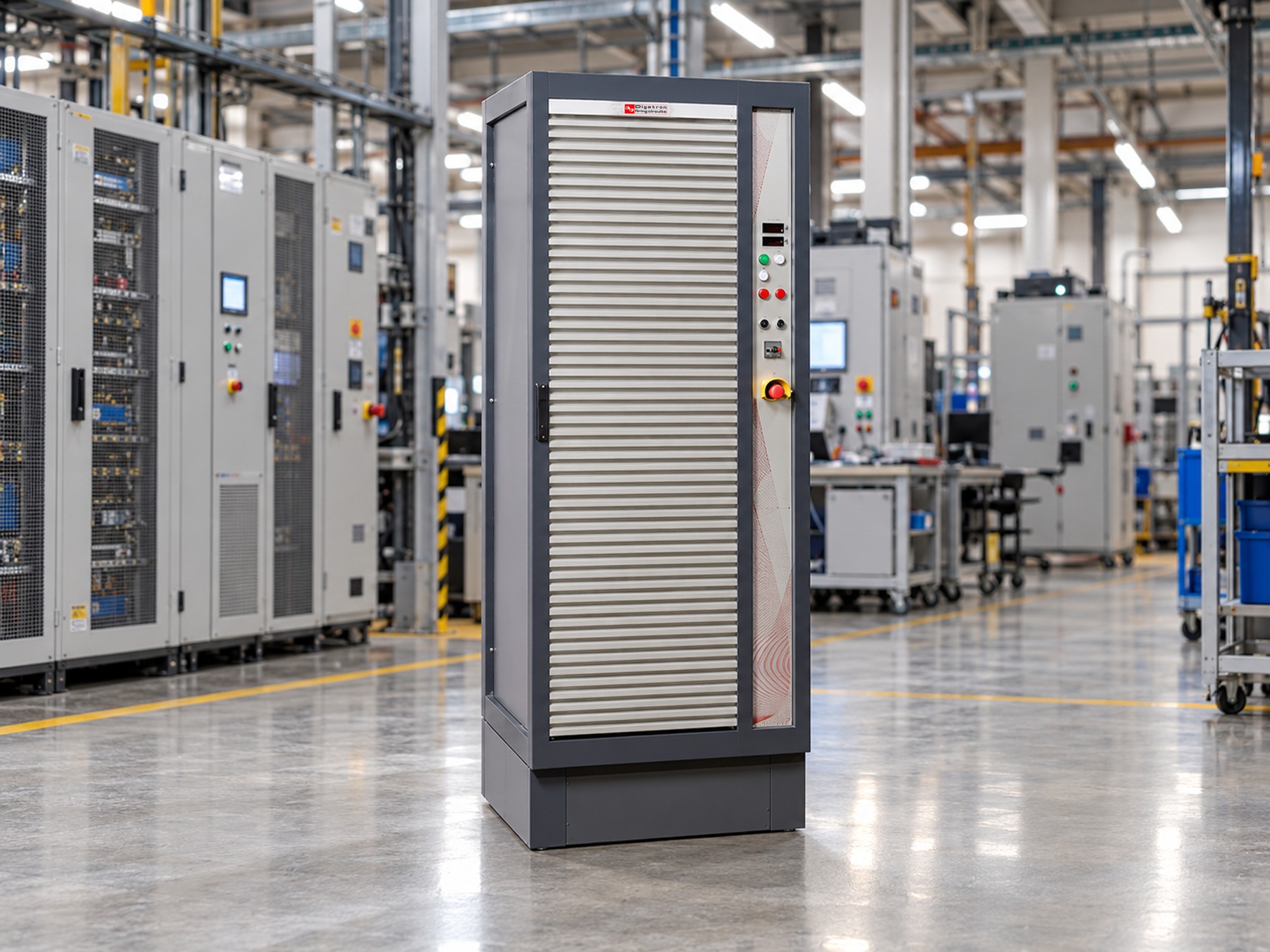

The Ador Digatron EVT-IGBT was developed to test high-voltage battery packs (e.g. for electric vehicles) with up to 80 kW per power element. Its unique modularity enables stand-alone operation or the parallel connection of several power elements for increased output. The device is equipped with IGBT technology and is ideal for fast load changes and simulation of dynamic driving profiles.
Space-Saving
Compact design requires little space and fits comfortably through door frames.
One Device, Two Functions
Available as bivalent on request — the system can also operate as a battery emulator (BE mode).
Dynamic Testing
Ideal for fast load changes and simulation of dynamic driving profiles.
Technical Data
| Voltage range | 0/50 V up to 600 V · 800 V · 1000 V variants |
|---|---|
| Current per module | 300 A / 400 A peak (600 V) · 300 A (800 V) · 200 A (1000 V) |
| Power per module | 80 kW · 135 kW peak (600 V variant) |
| Paralleling of circuits | Yes |
| Control accuracy U DC | < ± 0.1 % fs |
| Control accuracy I DC | < ± 0.1 % fs |
| Current rise time (10–90%) | ≤ 3 ms |
| Mains feedback | Yes |
* additional values on request
