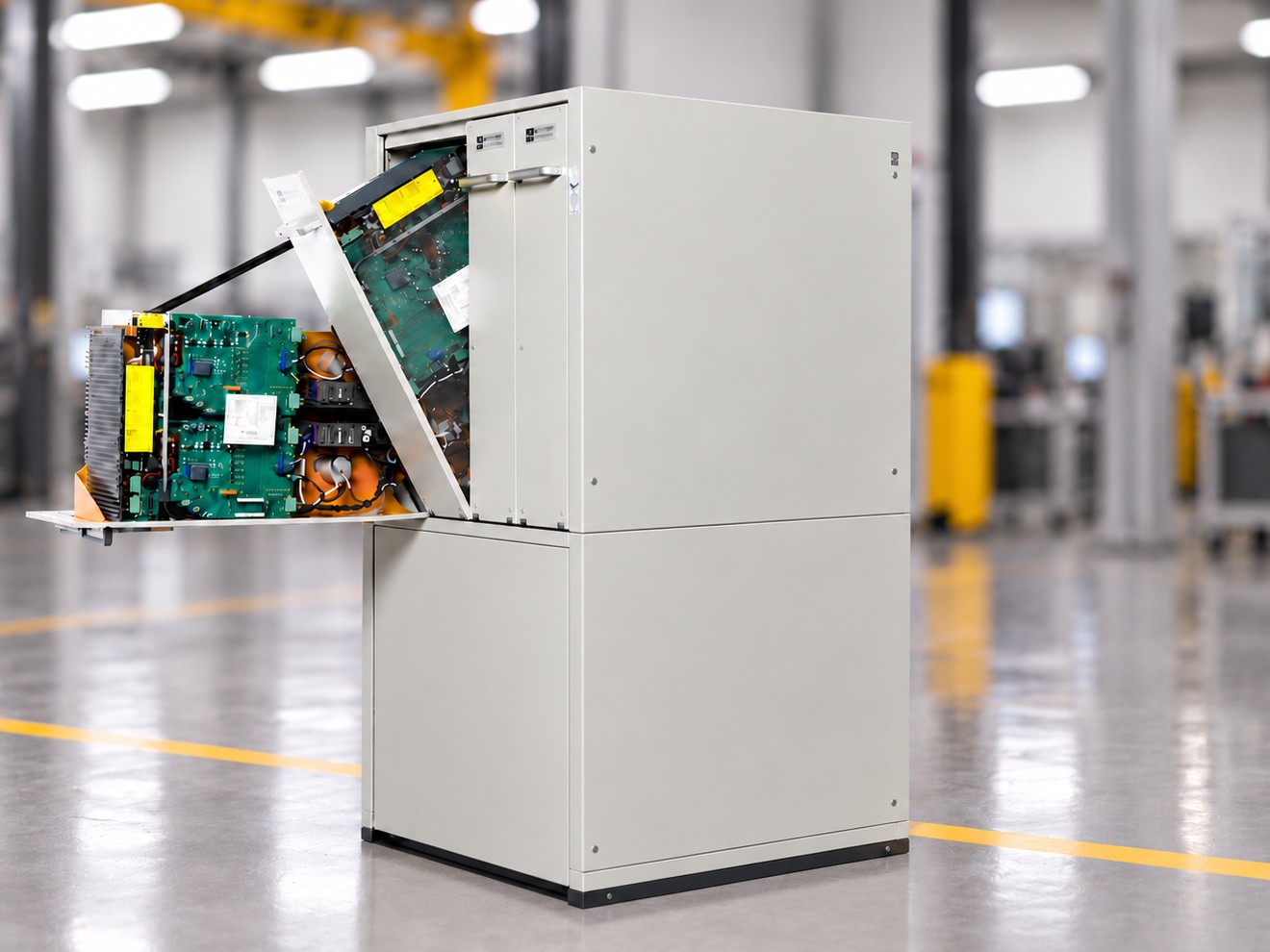

Formation Rectifier
Ador Digatron's formation rectifiers are devices for the initial charge — and optionally the discharge — of lead-acid batteries. They have proven their worth in thousands of installations through flawless quality and reliability. Depending on your requirements, we supply the device with typical thyristor technology, as IGBT, or in the cutting-edge energy-saving version with SiC MOSFET technology.
High Energy Efficiency
Especially economical with energy; energy feedback available across variants.
Flexible Technology
Thyristor, IGBT or energy-saving SiC MOSFET versions.
Proven Reliability
Thousands of installations worldwide.
Technical Data
| Voltage range | 0 up to 450 V (Thyristor) · 0 up to 400 V (IGBT) · 0 up to 360 V (SiC-MOSFET) |
|---|---|
| Current range | ±30 A up to ±200 A · ±60 A up to ±100 A |
| Control accuracy U DC | < ± 1.0 % fs |
| Control accuracy I DC | < ± 1.0 % fs |
| Energy feedback | Yes |
| Scalable | Yes |
* additional values on request
Suitable for the Following Tests
Initial charge (formation)Optional dischargeLead-acid production
