ECT

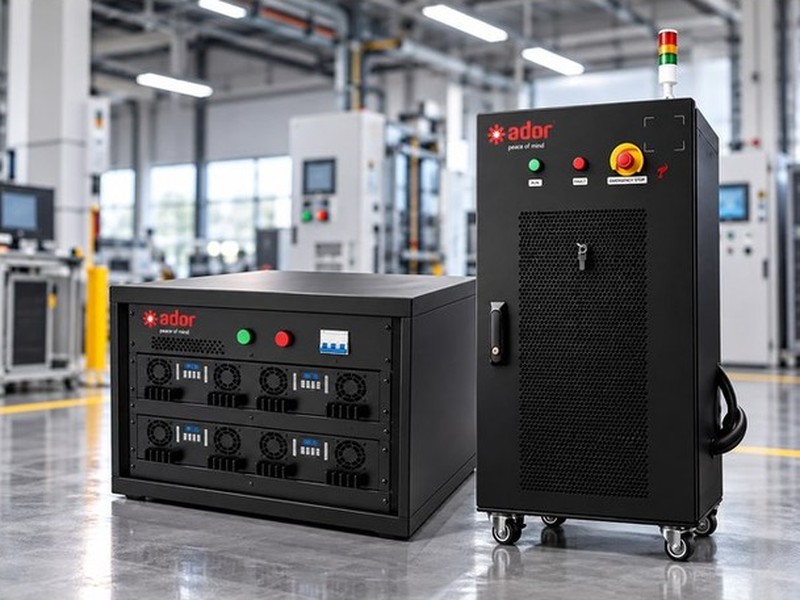

Lithium cell tester for production lines — high-throughput charge/discharge testing built for continuous manufacturing environments.

Main Parameters

Input power supply	AC 415 V, 50Hz, Three phase five wire
Charging and discharging power factor	0.99
THDi	≤5%
Overall efficiency	Maximum efficiency of 85%
AC input protection	Anti surge, anti islanding, over/under frequency, over/under voltage, phase loss protection, leakage protection, over temperature protection, etc.
Charging voltage range	0V~5V
Discharge voltage range	5V~1.5V
Charging and discharging current range	200mA~200A
Voltage and current accuracy	±0.05% FS±0.05% R.D (25°C ±5°C)
Charge discharge mode	Constant voltage, constant current, constant power, constant current and voltage, constant resistance, current pulse, power pulse, working condition simulation, DC internal resistance testing, etc.
Deadline conditions	Voltage, current, relative time, capacity, temperature, etc.
Current response time	10ms (10%-90% FS)
Current switching time	20ms (-90%-90% FS)
Protection function	Host protection, over specification protection, emergency stop protection, power-off data protection, trend protection, output protection, communication protection, program protection, confirmation modification protection, reverse connection protection, voltage clamp protection, voltage jump protection, wire breakage protection, insulation protection, etc.

Model	Prismatic Cell Size	Pole Ear Distance	Voltage Range	Current Range
ECT-5V-200A-16CH	L:100~200mm; W:20~75mm; H150~250mm	60~160mm	0~5V	200mA~200A
ECT-5V-150A-32CH	L:100~200mm; W:20~75mm; H150~250mm	60~160mm	0~5V	150mA~150A
ECT-5V-200A-24CH	L:100~200mm; W:20~75mm; H150~250mm	60~160mm	0~5V	200mA~200A
ECT-5V-60A-32CH	L:<240mm; W:<150mm; H55~235mm	40~170mm	0~5V	60mA~60A
