Cell & Battery Test Solutions · Lead Test & Formation · Laboratory · Data Logger

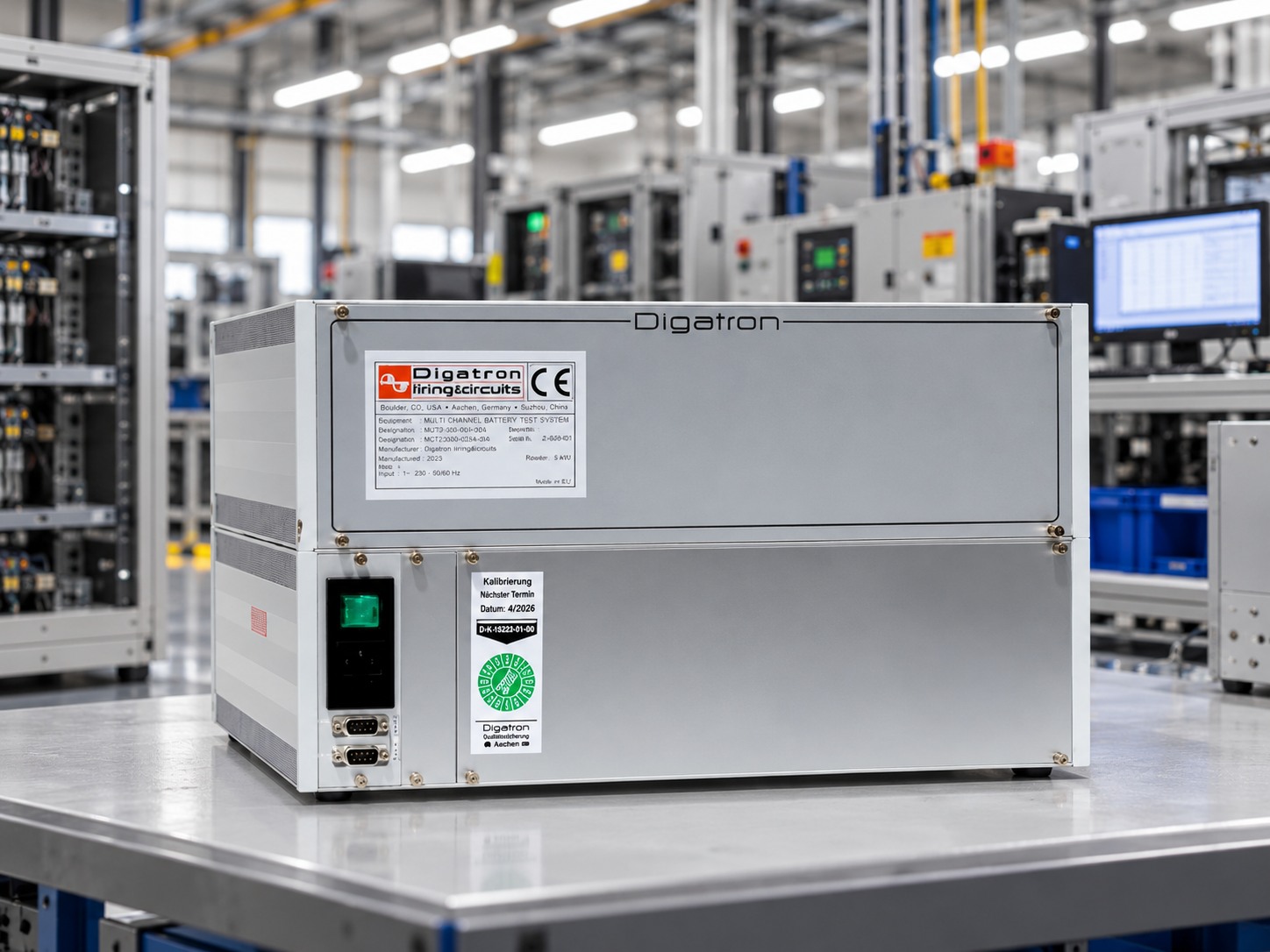

DLS
Digatron's fully integrable data loggers enable data acquisition for single cell voltages and battery and tank voltages during the test cycle. The sequentially recorded data can then be used for comparisons, assessments or as evidence.
More than Voltage
Inputs for many types of temperature probes; the measuring transducer can replicate virtually every physical value.
From Small to Very Large
Scalable from a small design with a few channels up to installations with several hundred channels.
Easy to Adapt
Modular design adapts to any specific requirement or application.
Technical Data
| Interface | Digatron CAN Bus |
|---|---|
| No. of input channels | Max. 500 channels |
| Type of input channels | Voltage, thermocouples, PT100, AD 590 |
| Accuracy voltage channels | ± 0.1 % fs |
| Resolution voltage channels | ± 15 bit |
| Accuracy temperature channels | ± 1 °C |
| Resolution temperature channels | ± 11 bit (AD 590) |
| Data acquisition rate (DAR) | Min. 20 ms |
* additional values on request
