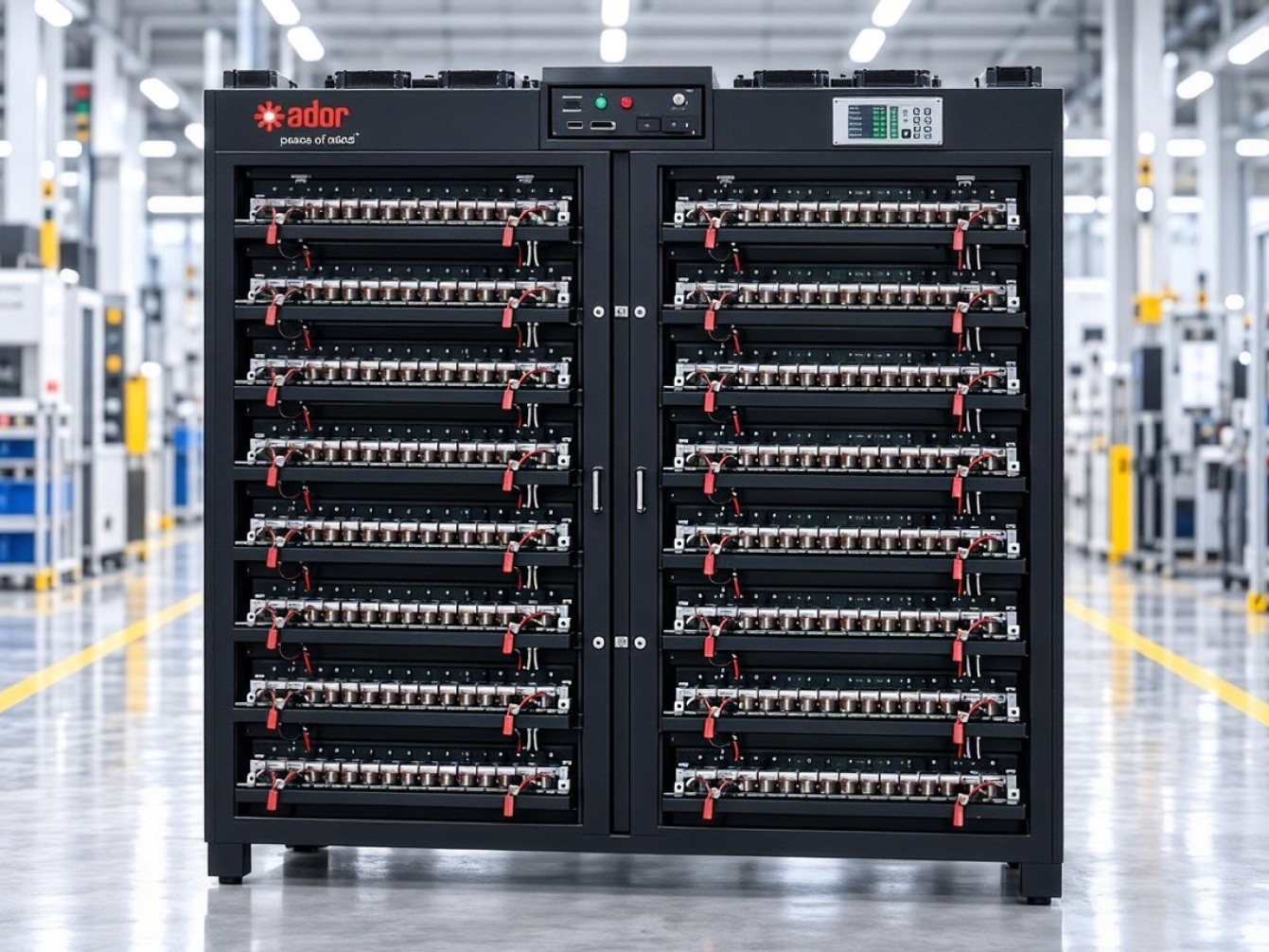

Cylindrical Cell Grading Machine
High-precision forming, grading, and cycle-life testing for cylindrical cells — from formation to automatic quality sorting in one machine.
- •Forms, grades and cycle-life tests cylindrical cells in one machine
- •Regenerative discharge feeds energy back to the grid — up to 80% efficiency
- •±0.05% F.S voltage and current accuracy with digital DSP control
- •256–512 independent channels; wide-tray, narrow-tray and needle variants
- •Fits cells from 18–60 mm diameter and 45–256 mm length
- •Auto-sorts cells by quality in a single step
Main Parameters
| Input power | AC 415 V, 50Hz, Three phase five wire |
|---|---|
| Charge/Discharge Power Factor | 0.99 |
| THDi | ≤5% |
| Efficiency | Up to 80% |
| AC input protection | Anti surge, Anti Islanding, Over/Under Frequency, Over/Under Voltage, Phase Loss Protection, leakage Protection, Over Temperature Protection, etc |
| Charging voltage range | 0V~5V |
| Discharge voltage range | 5V~1.5V |
| Voltage and current accuracy | ±0.05% F.S + ±0.05% R.D (25°C ± 10°C) |
| Charging/discharging methods | Constant Current, Constant Voltage, Constant Current-Constant Voltage, etc |
| Cut-off condition | Current, Voltage, Time, Capacity, etc |
| Current response time | 10ms (10%~90% F.S) |
| Current switching time | 20ms (-90%~90% F.S) |
| Protection function | Overcurrent/overvoltage/undervoltage/reverse connection/wrong connection/communication abnormality protection, etc |
Model Range
| Model | Cell Diameter | Cell Length | Voltage Range | Current Range |
|---|---|---|---|---|
| EGM-5V-10A-256CH | 32-60mm | 115-256mm | 0-5V | 10mA-10A |
| EGM-5V-6A-512CH-wide_tray | 18-33mm | 65-210mm | 0-5V | 10mA-6A |
| EGM-5V-3A-512CH-niddle-structure | 18-32mm | 65-70mm | 0-5V | 10mA-3A |
| EGM-5V-6A-512CH-narrow-tray | 18-33mm | 45-95mm | 0-5V | 10mA-6A |
| EGM-5V-3A-512CH | 18-33mm | 45-95mm | 0-5V | 10mA-3A |
