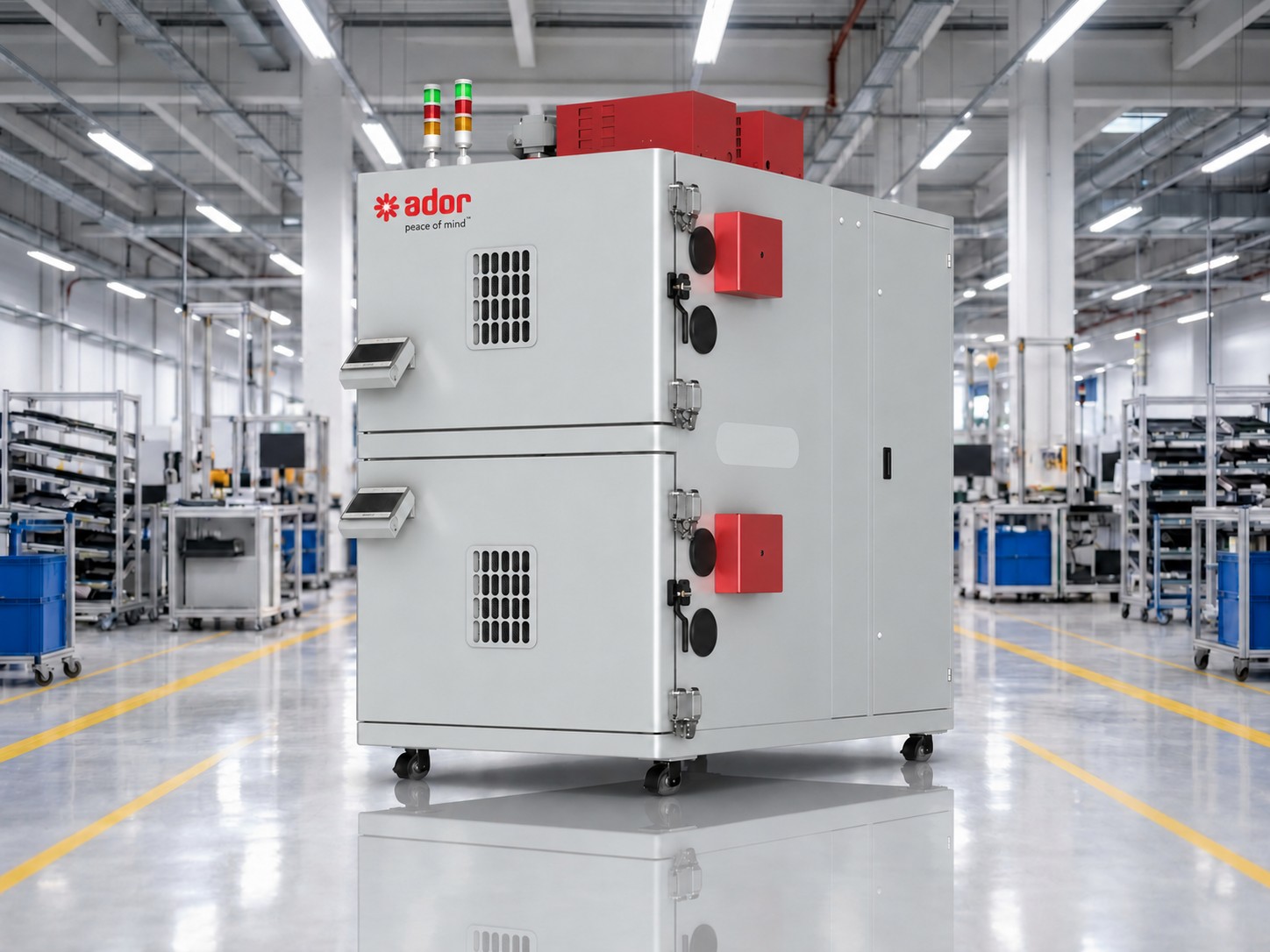

Climatic Charge-Discharge Integrated Tester
Charge-discharge cycling inside integrated climatic chambers — combine electrical testing with controlled temperature environments in a single system.
- •Charge-discharge cycling inside integrated climatic chambers
- •Controlled temperature environment for realistic test conditions
- •Combined electrical and environmental testing in one system
Technical Data
| Parameter | BTS-CHAMBER-B450XL |
|---|---|
| Internal chamber size (W × D × H) | 1200 × 500 × 750 mm, 2 layers |
| Temperature range | -40 ~ 150°C |
| Humidity range | 20 ~ 98% RH (optional) |
| Temperature ramp rate | Customizable |
| Temperature uniformity | < 1°C |
| Output voltage | Charge: 0 - 5V; Discharge: 1 ~ 5V (max. output cable length: 2 m) |
| Output current | 100 A ~ 1200 A, customizable |
| Channels per chamber | Customizable |
| Voltage accuracy | ±0.02% F.S. (15°C ~ 35°C) |
| Current accuracy | ±0.03% F.S. (15°C ~ 35°C) |
| Current response / switching time | 3 ms (10% ~ 90%) / 5 ms (-90% ~ +90%) |
| Fire safety & protection | Pressure relief, door stop chain, smoke and gas detection (CH₄, CO, H₂), over-temperature protection, water spray and water immersion systems, remote and automatic fire suppression, independent alarm and emergency power cut-off. Forced exhaust, monitoring, perfluorohexanone fire suppression and safety PLC are optional. |
Specifications are subject to change without notice.
