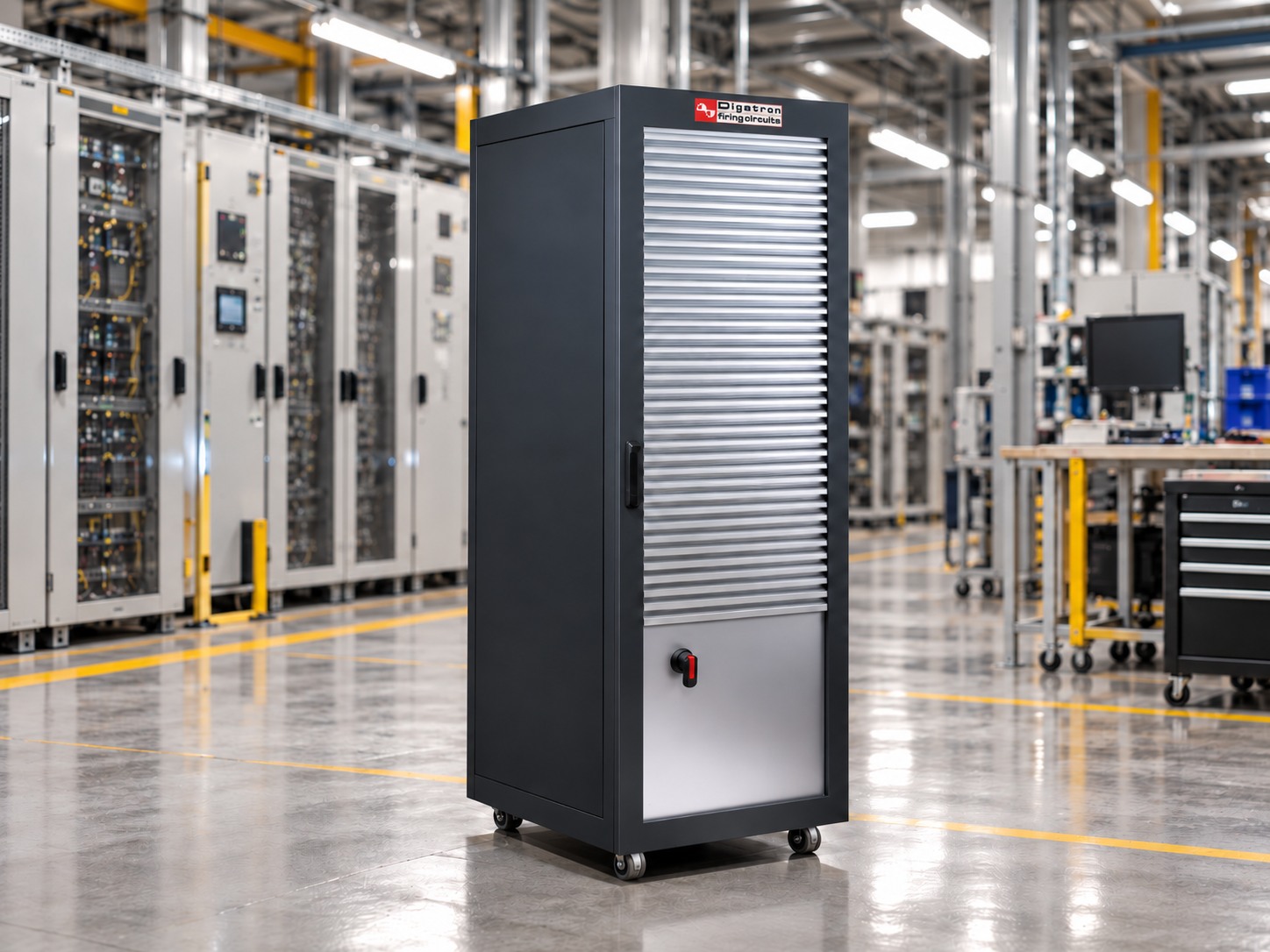

Ador Digatron HEW
The Ador Digatron HEW was specially developed for high-current discharge tests on vehicle batteries. It performs high-rate discharges, such as cold starting, in the current range from 5 amps to 3000 amps. It provides information on parameters such as constant current and voltage, resistance and power — fully automated, with no manual battery handling, according to the programmed test plan. An integrated recharge stage is available on request.
Wide Current Range
Effortlessly tests batteries between 5 amps and 3000 amps.
Fully Automated
No manual battery handling — tests run according to the programmed test plan.
One Device, Two Functions
Optional integrated recharge stage on request.
Technical Data
| Voltage range | 5 V up to 14 V* |
|---|---|
| Current range | 600 A up to 3000 A |
| Rise time | < 10 ms |
| Control accuracy U DC | < ± 0.1 % fs |
| Control accuracy I DC | < ± 0.1 % fs |
* additional values on request
